The Monarc Tracer High-Step and Tracer Step-Thru use the same main motor, battery, tires, fork, brakes, and riding system. The important difference is the frame opening. Compare mounting, stops, balance, lifting, and fit before choosing your bike in Tampa Bay.
Monarc Tracer High-Step vs Step-Thru: Frame Comparison
The High-Step has a 31.4-inch standover height. The Step-Thru has a 22.5-inch standover height. That is an 8.9-inch difference in the frame area. It is not an 8.9-inch difference in seat height.
Both frame styles use a 6061 aluminum frame and the same core equipment. Neither version is a power upgrade over the other. Your best choice depends on how each frame feels when you mount, stop, turn, and place a foot down.
| Feature | High-Step | Step-Thru |
| Price | $1,899 | $1,899 |
| Standover | 31.4 inches (798 mm) | 22.5 inches (573 mm) |
| Fit | 5 ft 4 in–6 ft 4 in | 5 ft 2 in–6 ft 3 in |
| Weight | 73 lb | 71 lb |
| Colors | Superior (blue) and Taconite | Juneberry (purple) and Birchwood |
Choose your Tracer frame
Review the current product page, color options, and package details before ordering. Color availability is not guaranteed.
Shop Monarc Tracer High-Step
Shop Monarc Tracer Step-Thru
High-Step Frame View
 |

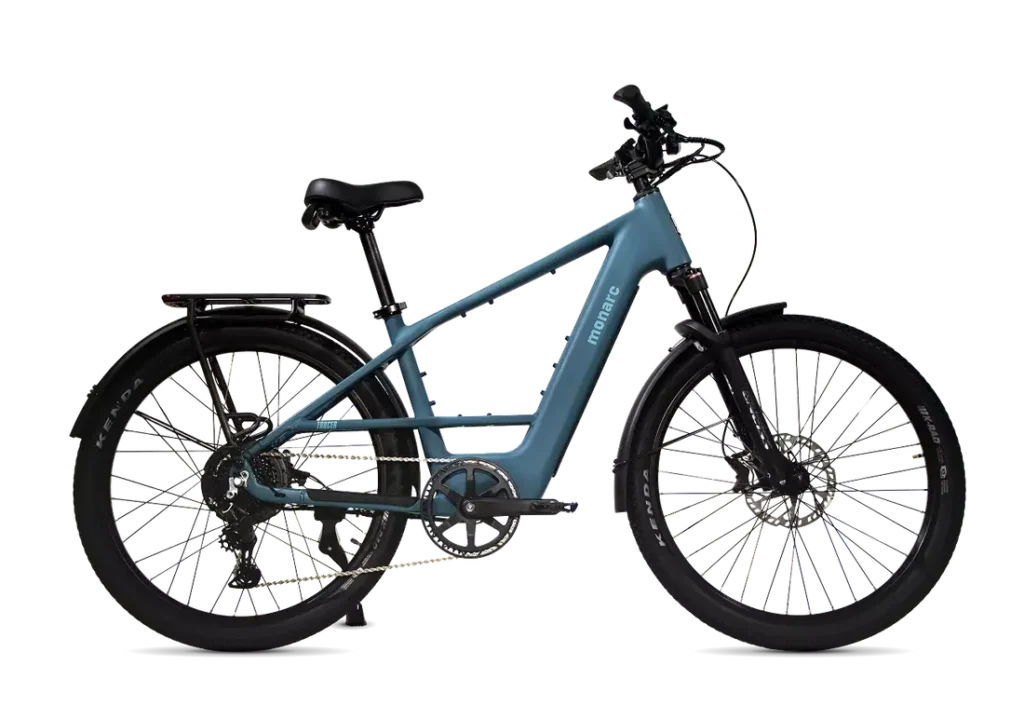

Monarc Tracer High-Step in Superior (blue), shown from the full side.
Standover Height Is Not Seat Height
Standover height is the distance from the ground to the frame at the manufacturer’s measurement point. Seat height is adjusted at the seat post. A lower Step-Thru opening may make mounting easier, but it does not automatically determine your final riding position.
Suggested rider height is guidance, not a fit guarantee. Inseam length, reach to the handlebars, balance, stopping habits, and confidence all matter. A rider near the listed height range should still try the bike in person.
Step-Thru Frame View
 |

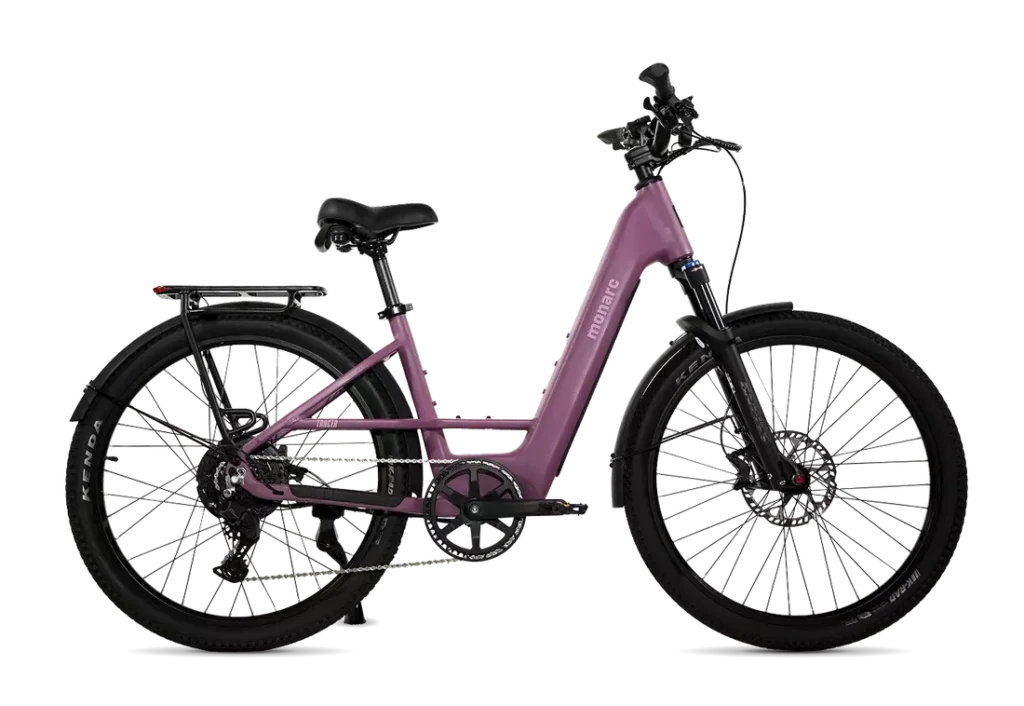

Monarc Tracer Step-Thru in Juneberry (purple), shown from the full side.
Fit Checklist Before You Buy
- Can you comfortably swing a leg over the High-Step frame?
- Does the Step-Thru opening make starts and stops easier for you?
- How do your inseam, reach, balance, and stopping habits affect control?
- Can you safely lift a 71–73 lb e-bike when storage requires it?
- Is your vehicle rack compatible with the bike and rated for its weight?
- Which frame feels easier to mount and control during a showroom test ride?
The Step-Thru may be the easier choice for riders who want a lower opening for mounting. The High-Step may suit someone who prefers its frame layout. Compare both frames using your own mounting and stopping movements.
Shared Motor, Battery, and Riding System
The two Monarc Tracer frames share the same main power system. The Bafang B750 rear hub motor is rated at 750W nominal and 1,638W peak, with 85 Nm of torque. Both use selectable torque or cadence sensing, with torque sensing as the default, plus a left-thumb throttle.
- Class 2 default, configurable as Class 1, Class 2, or Class 3.
- Maximum assisted speed of 28 mph when the applicable configuration is selected.
- Removable 48V 15Ah, 720Wh LG-cell battery.
- Manufacturer range claim of up to 65 miles per battery.
- Actual range changes with pedal assist, speed, rider and cargo load, terrain, tire pressure, and weather.
- A 5A charger takes approximately 3 hours per battery.
- Confirm current package contents and any spare-battery options with Tampa Bay eBikes before ordering.
Shared Equipment and Braking Details
Both bikes use the same urban equipment package. The suspension fork is an 80 mm Gneiss fork with lockout and preload adjustment. The tires are 27.5 x 2.2 Kenda K-RAD tires. The drivetrain is a Shimano CUES 9-speed system.
Both frames use Star Union Talon P4 four-piston hydraulic brakes, with a 203 mm front rotor and a 180 mm rear rotor.
- 3.5-inch touch display.
- Fenders and integrated lights.
- Rear light with brake-light function and turn signals.
- Rear rack with a 59 lb cargo limit.
- Maximum rider weight of 330 lb.
The 59 lb rack limit applies to cargo on the rack. It is not the same as the 330 lb maximum rider limit.
High-Step Details for a Showroom Check
 |

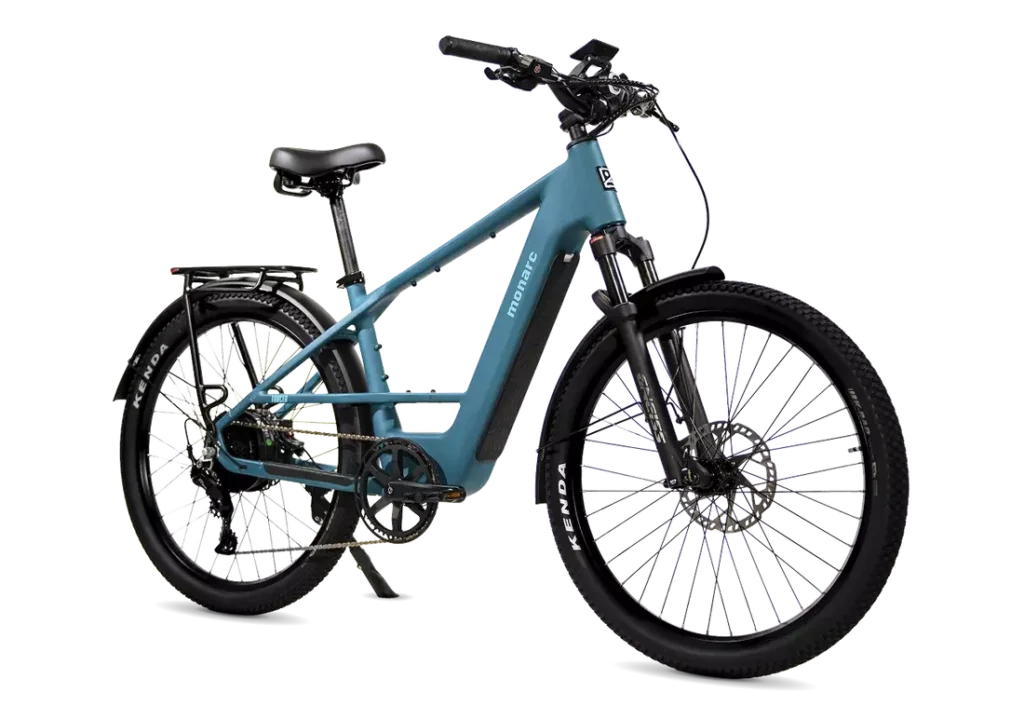

Monarc Tracer High-Step in Superior (blue), shown from the front three-quarter angle.
Ask whether you can mount without rushing, pause at a stop, and place a foot down with confidence. Also check reach to the controls, the left-thumb throttle, and the Shimano CUES shifter position.
Step-Thru Details for a Showroom Check
 |

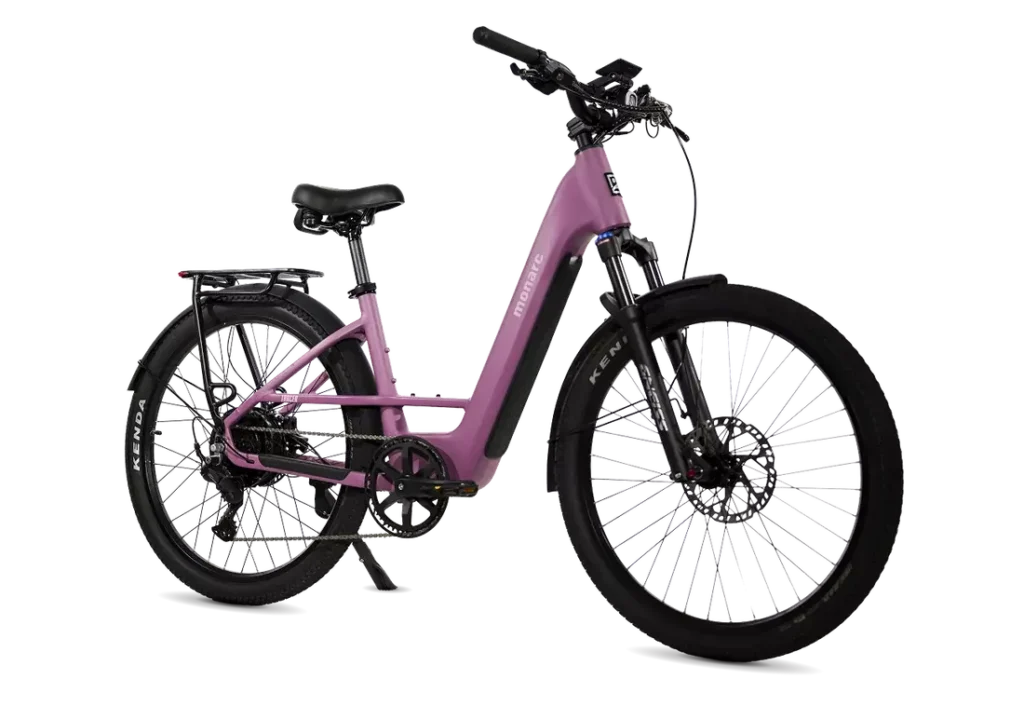

Monarc Tracer Step-Thru in Juneberry (purple), shown from the front three-quarter angle.
Ownership, Lifting, and Rack Considerations
The Step-Thru weighs 71 lb and the High-Step weighs 73 lb. Both are heavy to lift. Before buying, measure your storage area and check stairs, vehicle loading, and the way you will move the bike.
Rack compatibility must be checked separately. Confirm the rack’s bike weight rating, mounting method, tire clearance, and frame support. The bike’s 59 lb rear cargo-rack limit is separate from the weight rating of a vehicle-mounted bike carrier.
Frequently Asked Questions
Is the Step-Thru more powerful?
No. Both Monarc Tracer frame styles share the Bafang B750 motor, 85 Nm torque, battery system, fork, tires, drivetrain, and brakes.
What is the standover difference?
The High-Step is 31.4 inches and the Step-Thru is 22.5 inches. The difference is 8.9 inches. Standover is not seat height.
How much range does one battery provide?
The manufacturer claims up to 65 miles per battery. Actual range depends on assist level, speed, load, terrain, tire pressure, and weather.
Can I test both bikes?
Call ahead to confirm the exact frame, color, and test-ride availability at your preferred showroom.
Local Help and Test Rides in Tampa Bay
Tampa Bay eBikes offers professional assembly, a safety inspection, and local service. Staff can help you compare mounting, stopping, reach, display controls, and storage needs. Call ahead before traveling to confirm the exact frame and test-ride availability.
- 4004 S MacDill Ave Unit 6, Tampa, FL 33611
- 376 Patricia Ave, Dunedin, FL 34698
- 4116 S 8th Ave Unit B, St. Petersburg, FL 33711
View Tampa Bay eBikes locations
Plan your frame comparison
Ask about fit, rack compatibility, current package contents, and a test ride before making your decision.
Call 727-228-1975
Email Tampa Bay eBikes
Choose the Tracer Frame That Feels Right
Choose the High-Step if its mounting height, reach, and control feel comfortable. Choose the Step-Thru if the lower opening makes starts and stops easier for you. Both provide the same core Monarc Tracer power and equipment.
Shop Monarc Tracer High-Step
Shop Monarc Tracer Step-Thru
For a separate tire and model comparison, read the Monarc Marker vs. Tracer Step-Thru guide. It compares different Monarc models, not the two Tracer frame styles.
Sources and date: Frame geometry and specifications were verified with the Monarc manufacturer source and Tampa Bay eBikes product and location pages. Facts and price were checked September 27, 2026. Prices and availability are subject to change.
